Our Shade Sails are made from knitted polyethylene monofilament and tape. The knit pattern in the shadecloth is important to allow evenness of stretch in both warp and weft directions. When joined to cover larger areas than the cloth width, a French seam is used with 2 rows of stitching 25mm apart
The edges of the Shade Sail are curved and hemmed with a seat-belt webbing, either 25, 32, or 50mm wide (depending on the size of the sail). All stitching is done with a bonded polyester thread as it has a good UV stabilization.
The corners are reinforced and sewn to a stainless steel "D" ring or shackle. Large sails have a 12mm round bar galvanised corner fitting.
Each sail is individually designed and patterned. The sails are fitted on an even slope or a hypar (twisted) shape with the low sides to the side of the hot afternoon sun. The sails are not waterproof, however
if angled correctly, most heavy rain will run off and that which penetrates is like a fine mist.
The sails are normally connected to galvanised steel posts set in concrete footings. They can be connected to existing structures if sufficient support is in place or added. Often the posts are angled back away from the centre of the sail because any deflection in the post is not seen as easily and more importantly the force is transferred down the post into the substantial footing.
All shapes and sizes of sail are available.
Waterproof sails in vinyl and canvas type fabrics are also available. In most cases, this requires larger steel posts, footings, connections, and a landscape or drainage plan due to the additional weight from wind and rain.
Enviro Port covers are made of knitted polyethylene monofilament and tape. The knit pattern is important to allow evenness of stretch in both directions. When joined to cover larger areas than the cloth width, a French seam is used with 2 rows of stitching 25mm apart.
Enviro Ports are supported by galvanised corner posts and an under cover frame which forms a central hip as the cover is raised and tensioned.
The simple design of Enviro Ports is engineer certified and allows clear space over playground or other equipment.
These fully framed modular shade structures are ideal for residential and large scale commercial applications. Enviro Ports are easy to install and supplied as a complete kit, including fully galvanised frame and stainless steel nuts and bolts. A unique tensioning systems keeps the fabric tight.
The simple design is engineer certified and allows clear space over playground or other equipment.

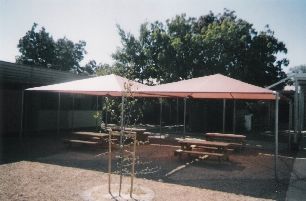

Enviro Ports can be linked together to almost any size. this makes them perfect for larger areas including car parks.
All sizes of Enviro Ports are available, however some standard sizes include...
7.5m x 5m, 6m x 5m, 5m x 5m, 3m x 5m.
Structures with cables in the outside hem often cause wear or looseness due to different stretch rates. Enviro Ports have a smooth, round, steel pipe frame in the hem of the cover so there is enough strength for light weight bistro blinds to be added, mostly used for wind protection, however the strength of the structure itself withstands strong wind.

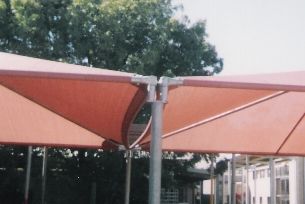

As can be seen from this photo showing the detail of the connection when Enviro Ports are installed in pairs, there is a very small deflect due to the side pipe in the hem.
Waterproof covers are available using waterproofed shadecloth.

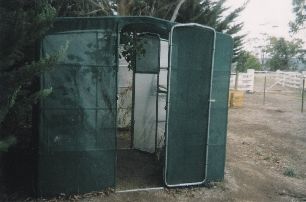

Dashco manufactures and supplies the all Australian All-Covers Shade House, Hot House, and Dual Houses.
The All-Covers Shade House, using 70% (shade factor) knitted premium grade shadecloth cover, fits easily over a heavy-duty galvanised steel frame to protect your plants from the harsh effects of the sun and wind, preventing plant stress, burning of
leaves and the need for heavy watering. The shade cover provides protection whilst maximising ventilation to provide an ideal summer growth environment.
The All-Covers Hot House, using "Solargro" material, fits snugly over the same frame to create an ideal atmosphere for the propagation and nurturing of one's favourite plants. The Dashco Hot House can be used in winter for the cultivation of flowers, seedlings, and vegetables. The All-Covers Hot House is also suitable for Hydroponics, indoor plants, and orchids.
The All-Covers Dual House is half Shade House and half Hot House in one, which means not having to change cover for the different seasons. The innovative Dual House offers real value for money providing perfect environments for joint propagating and conserving of all seedlings and plants for all seasons.
The Shade House half is in the front while the Hot House in at the rear. Inside there is a separate door with vent for the hot house, as well as a vent in the rear wall. The standard size of the Dual House is 2.4m x 3.6m (8' x 12') and the height is 2.15m (7').
